Sentry Security Screen Door

Aluminum Security Screen Door

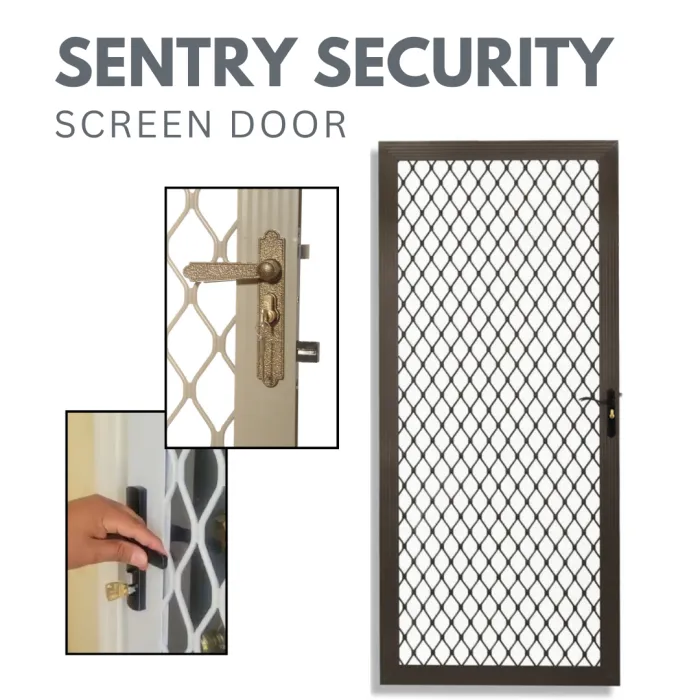

Introducing the Sentry Security Screen Door – your steadfast guardian for home safety and peace of mind. This robust and elegantly designed aluminum security screen door offers ideal protection for entry doors without compromising on the beautiful look of your home. The design actually enhances your home. With its advanced locking system and reinforced ampli-mesh, the Sentry ensures that your home stays protected while maintaining a seamless flow of fresh air. Best Custom Screens provides this product to be sold online for the individual who can install it himself. Additionally, if you live in the Greater Los Angeles and surrounding areas, we can install it for you. The sentry security screen door is designed to provide an additional layer of security for your home. Certainly, while still allowing for ventilation and natural light also enters. Meanwhile, it’s made of a durable, corrosion-resistant aluminum and has quality mesh screening. Above all, they are custom-made to the size of the door opening and the desired color.

Specifications:

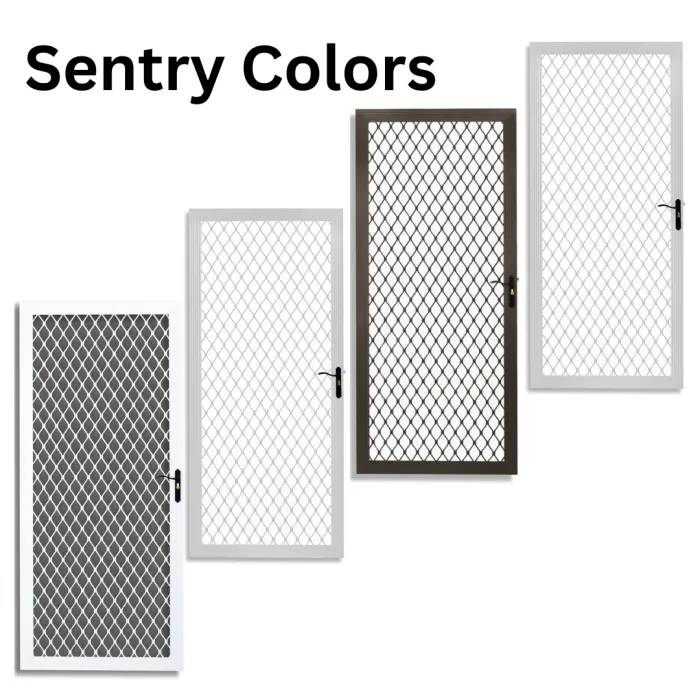

Available painted finishes for the Sentry – Security screen door:

• Anodized
• Black
• Adobe
• White
• Bronze
• Tan

Custom sizes:

• 30″, 32″, 36″, 42″. Please provide us with your door opening size, width x height in inches.

Grille:

• Heavy Duty 1/4″ Extruded Aluminum Sentry Amplimesh

Frame:

• 7/8” x 2-7/8” x .060 Extruded Frame

Corners:

Extruded Corner Locks with 4 Screws Per Corner.

Features & Benefits

• Lock: Extruded Corner Locks
• Adjustment Channels: 1-7/8” Slide & Bottom Adjustment Channels.
• Bearing: 3-Oilite Bearing Hinges Riveted to Channels
• Air Closer: Heavy Duty Air Closer

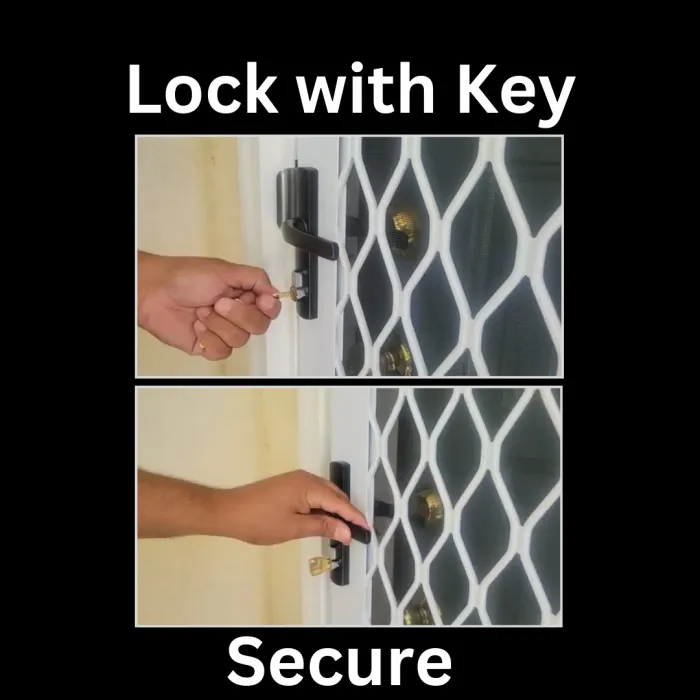

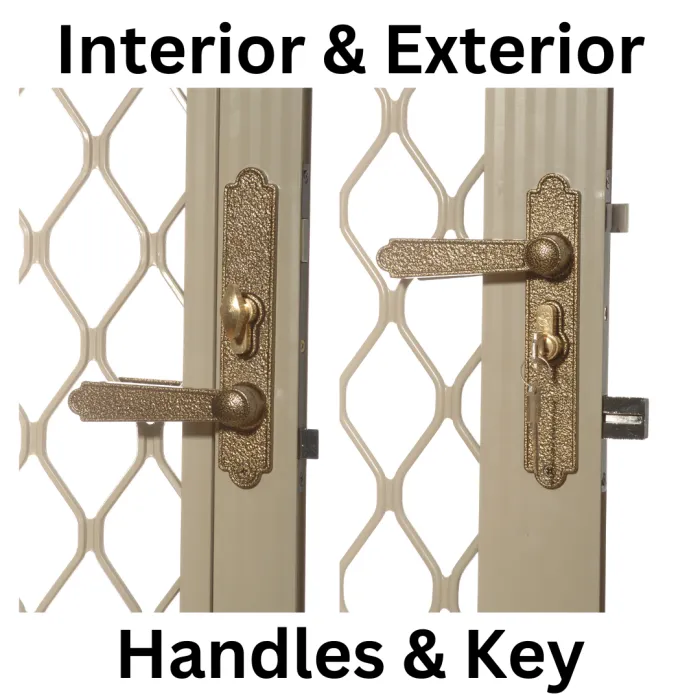

• Handle: Lever Handle w/15, Deadbolt, and Thumb Turn Cylinder. Double Keyed Cylinder on request. Cylinders Keyed Alike on request
• Protective: Active packaging
• Screening: Fiberglass Screening or upgrade to Pet Screen
• Special Sizes: Special Sizes Available. 48-hour Lead Time. (These doors cannot be cut down) Widths: 28″  to 35-1/4” Max.

MEASURING: A. Determine where the door is to be installed

1. With the entry door closed, determine how far the door sticks out a. Is there a need to add a wood stop? b. Is there a need to use the Jamb extender? c. Is there a need to rebuild or add a whole new frame?

B. Measure at the previously determined location. As a result, you will get an accurate measurement.

1. Always measure width x height
2. Some doors are hand-locked and require identification a. Always from the outside b. Position of handle — right or left
3. Handle placement on security and combination doors is dead center a. If special placement is desired, state measurement from the top of the door to the center line of the handle and which side the handle is on

How to Measure Your Door Opening for a Swinging Screen Door

Getting a perfect fit for your new custom swinging screen door takes only about 5 minutes. Follow these simple steps before placing your order.

Important Golden Rules:

• Measure the Opening: Always measure the inside edge of the door frame opening, not your existing door.

• Order Format: Always record and submit your measurements as Width x Height (W x H).

• The Shortest Measurement Rules: Houses settle, and frames aren’t always perfectly square. Always use the narrowest width and the shortest height when ordering.

Step 1: Gather Your Tools

• A standard tape measure

• Notepad and pencil to write down your measurements

Step 2: Measure the Width (3 Points)

Measure horizontally from the inside edge of the frame to the opposite inside edge at three different locations:

1. Top Width: Inside edge to inside edge at the top.

2. Middle Width: Inside edge to inside edge at the center.

3. Bottom Width: Inside edge to inside edge at the bottom.

📝 Your Final Ordering Width: Look at all three numbers and write down the smallest (narrowest) measurement.

Step 3: Measure the Height (3 Points)

Measure vertically from the top inside edge of the frame down to the bottom sill/threshold at three different locations:

1. Left Height: Top to bottom on the far left side.

2. Center Height: Top to bottom right down the middle.

3. Right Height: Top to bottom on the far right side.

📝 Your Final Ordering Height: Look at all three numbers and write down the smallest (shortest) measurement.

Warranty:

Manufacturers Limited Warranty To the original purchaser, Active Window Products warrants this product and its parts to be free of defects in materials and workmanship for a period of one year from the date of purchase. Damage caused by accident, improper installation, or abuse, including but not limited to damage caused by pets, is specifically excluded from this warranty. Manufacturer’s liability on any claim shall not exceed the cost of the product. In no instance shall the manufacturer be responsible for consequential damage resulting from the use of this product. This warranty replaces any previous warranties, either written, oral, or implied, and is the only warranty made by this company. This warranty gives you specific legal rights. You may have other rights that vary from state to state.

Special Instructions

In addition, the Sentry – Security Screen Door cannot be cut down once made due to the custom nature of manufacturing. Sentry Security Sceeen Doors are mounted on the inside of the door frame Therefore, the Customer waives that BCS does not take responsibility for measurements. But the Customer is responsible for his or her own measurements. Likewise, please provide door opening.  Similarly, be sure to measure width in 3 places: at the top, middle, and bottom.  As well as measure the height in two places, the left and right sides.

Special Shipping Instructions:

Certainly, shipping prices for Assembled Sliding Screen Doors are for some locations in California, Arizona, Nevada, New Mexico, Washington, Oregon, Idaho, and Utah, but not in rural areas, as defined by trucking companies.  Meanwhile, Rural areas will be shipped partially assembled plus are defined by shipping companies, and other states will be shipped Unassembled. Consumer takes full responsibility for measurements and installation. We recommend that you use a handyman service to install. Best Custom Screens is not responsible for consumer measurement mistakes. For example, the customer’s comments:  “We love the Sentry – Security Screen Door. Best Custom Screens delivered a heavy-duty screen door to us.  The design works out perfectly with our windows and doors that have the same grid design. Best Custom Screens provided the product, and we had our handyman install it for us.  It’s all good!”

Disclaimer

Therefore, visit the Terms and Conditions page. By purchasing from the BCS website, the Buyer agrees to all Terms of Sale, and by using this website customer agrees to the Terms of Use.

Sentry Security Screen Door: Key Features at a Glance

Feature	Benefit	Steve Tristan’s Notes
Ampli-Mesh Security Screen	Hard to cut, hard to pry	Stronger than standard mesh; ideal for front entry safety
Heavy-Duty Aluminum Frame	Won’t rust; stays straight in heat	Great for California sun & coastal climates
Integrated Deadbolt Lock	Real security — not decorative	Locks like a real door, not just a screen
Powder-Coated Finish	Long-lasting color, weather-resistant	Same finish method used in pro-grade doors
Custom Sizes + Colors	Fits almost any home	Built to order at Best Custom Screens LA shop
Door Closer + Bug Sweep	No accidental slams, no pests	Everyday comfort upgrades customers love
